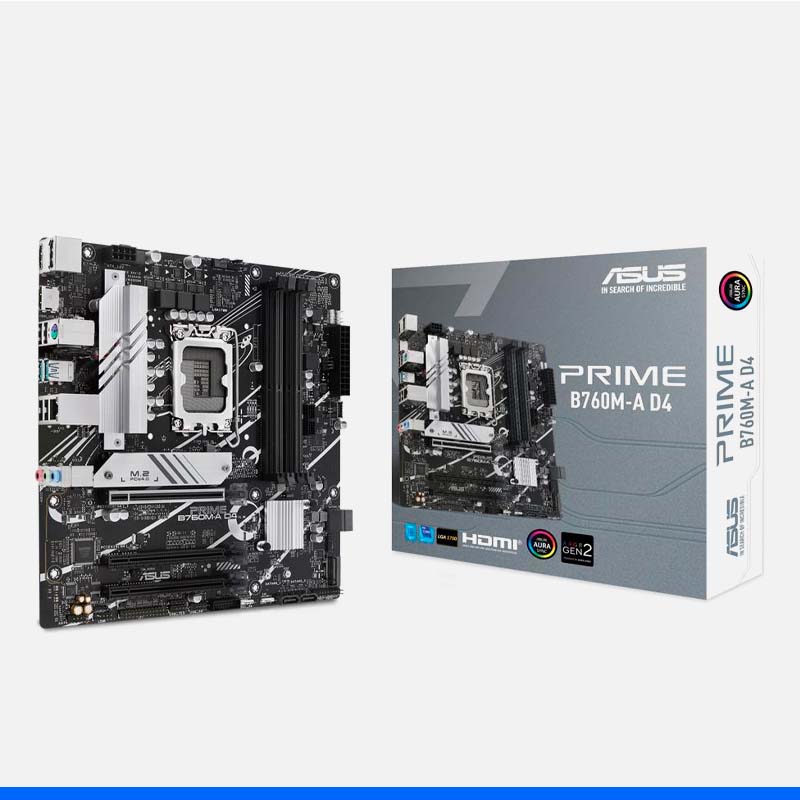

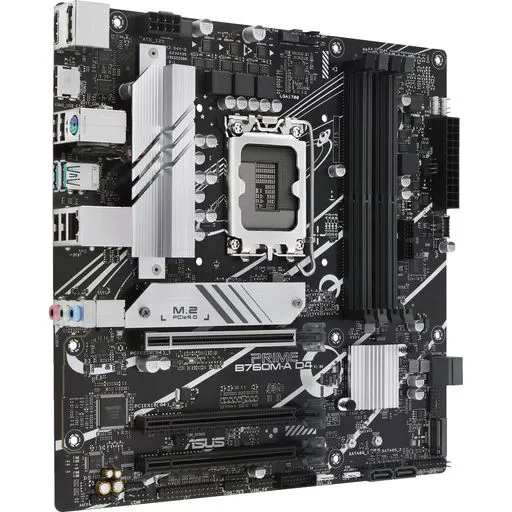

| MODELO | : | PLACA ASUS PRIME B760M-A D4 DDR4 LGA 1700 |
| MARCA | : | ASUS |
| ESPECIFICACIONES TECNICAS | ||
| CARACTERISTICAS | : | Soporta procesadores 13Th/12Th Intel Core |
| Iluminación Aura Sync RGB exclusiva de ASUS | ||
| Conectividad ultrarrápida: PCIe 4.0 dos puertos M.2 | ||
| Disipador de calor VRM, disipador de calor M.2 | ||
| FICHA TÉCNICA | |
|---|---|
| MARCA | ASUS |
| MODELO | PRIME B760M-A |
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| CHIP SET | Intel® B760 Chipset |
| MEMORIA | 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| GRÁFICOS | 1 x DisplayPort** 2 x HDMITM ports*** |
| SLOTS DE EXPANSIÓN | Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| ALMACENAMIENTO | Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6G |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| AUDIO | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB laye |
| PUERTOS USB | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 head |
| PUERTOS I/O TRASEROS | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMITM ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| INTERNAL I/O | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| MODELO | : | PLACA ASUS PRIME B760M-A D4 DDR4 LGA 1700 |
| MARCA | : | ASUS |
| ESPECIFICACIONES TECNICAS | ||
| CARACTERISTICAS | : | Soporta procesadores 13Th/12Th Intel Core |
| Iluminación Aura Sync RGB exclusiva de ASUS | ||
| Conectividad ultrarrápida: PCIe 4.0 dos puertos M.2 | ||
| Disipador de calor VRM, disipador de calor M.2 | ||
